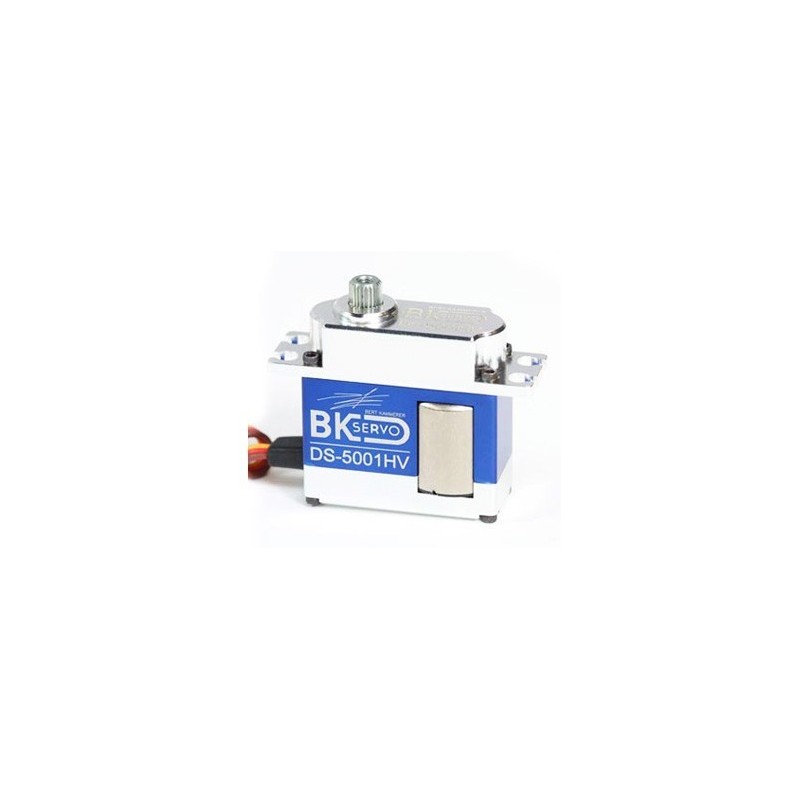

DS-5001HV – BK Mini High-Speed Cyclic Servo
€87.00
Tax included
Return policy:14
Politique de livraison
Return Policies
DS-5001HV – Mini High-Speed Cyclic Servo
The BK DS-5001HV is a high-performance mini cyclic servo designed for 500-class RC helicopters. It combines lightweight design, metal gears, and a coreless motor to deliver superior cyclic speed and precision.
Main Features:
- High-voltage servo for 500-class helicopters
- Ultra-fast cyclic response
- Coreless motor with all-metal gears
- Signal frequency: 1520 µs / 333 Hz
Technical Specifications:
| Specification | Value |
|---|---|
| Operating Voltage | 6V – 8.4V |
| Torque @ 6V | 8.4 kg·cm (116.7 oz·in) |
| Torque @ 7.4V | 9.6 kg·cm (133.3 oz·in) |
| Torque @ 8.4V | 10.6 kg·cm (147.2 oz·in) |
| Speed @ 6V | 0.035 sec/60° |
| Speed @ 7.4V | 0.032 sec/60° |
| Speed @ 8.4V | 0.030 sec/60° |
| Dimensions | 36 × 15 × 35.5 mm |
| Weight | 50 g (1.7 oz) |
| Motor Type | Coreless |
| Gear Type | Metal |
| Signal | 1520 µs / 333 Hz |
High-speed HV cyclic servo optimized for 500-class helicopters – fast, precise and reliable.
DS-5001HV
5 Items
Data sheet
- Taille Servos
- Mini
- Type Servo
- Cyclique
Hélicoptère - Impulsions Servos
- 1520 µs
- Fréquence Servos
- 333 Hz
- Type de moteur
- Coreless
- Tensions Servos
- 6,0 V
7,4 V
8,4 V
Specific References
- ean13
- 4717480604012
